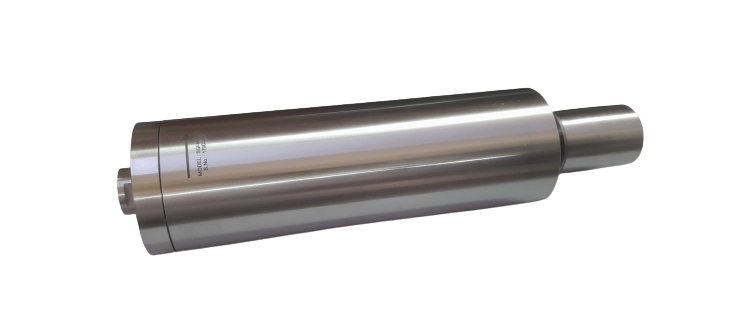

INTERNAL GRINDING SPINDLE – TAPER QUILL

  • SPINDLE DIAMETER 60 TO 120 MM
  • SPINDLE SPEED 2,00 TO 30,000 RPM
  • SPINDLE NOSE RUNOUT 2 MICRON
  • DYNAMICALLY BALANCED
  • LESS VIBRATION
SPINDLE MODEL

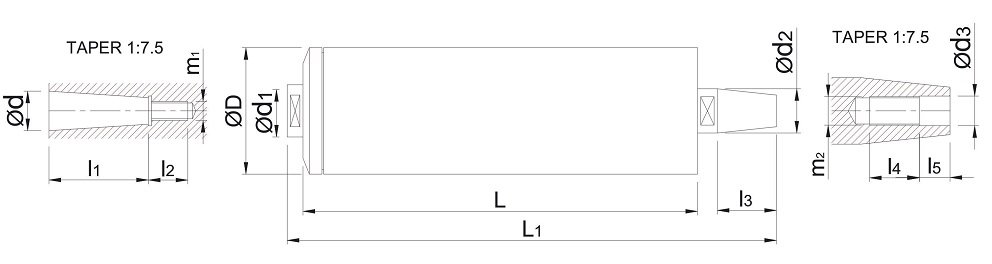

TGI-ØD X L		 Ød l1 l2 m1 Ød1 Ød2 l3 Ød3 l4 l5 m2 L1 MAX SPEED
(RPM)
TGI-60 X 250 16 25 23 M8 23 23 33 9 20 10 M8 305 18,000
24,000
30,000
TGI-70 X 250 16 25 25 M8 23 23 33 9 20 10 M8 305 18,000
24,000
30,000
TGI-80 X 250 23 38 27 M12 33 28 35 13 25 10 M12 310 14,000
18,000
24,000
TGI-100 X 250 32 75 35 M14 43 38 53 15 30 10 M14 330 9,000
14,000
18,000
TGI-120 X 250 40 90 45 M16 48 38 53 17 30 10 M16 345 8,000
12,000
16,000
